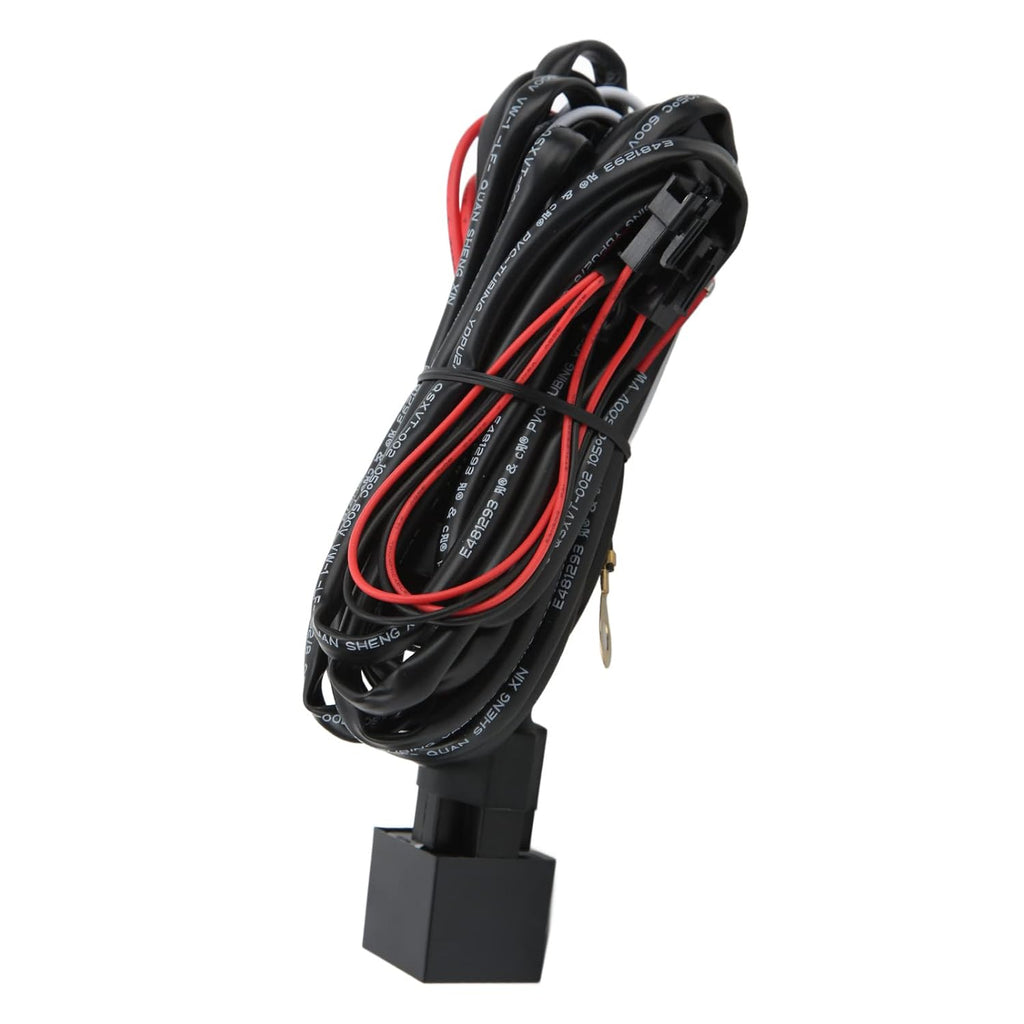

OEM OPERATION: This DRL wiring harness allows OEM function of your BMW's angel eyes if not originally equipped. Pairing this harness with a headlight package purchased from us will allow an OEM-like function for your new angel eyes equipped headlights. Wiring instructions are below.
FEATURE SET:
Angel eyes turn on with vehicle ignition (DRL function).
Angel eyes fade-off with keyfob vehicle lock.
Angel eyes fade-on with keyfob vehicle unlock.

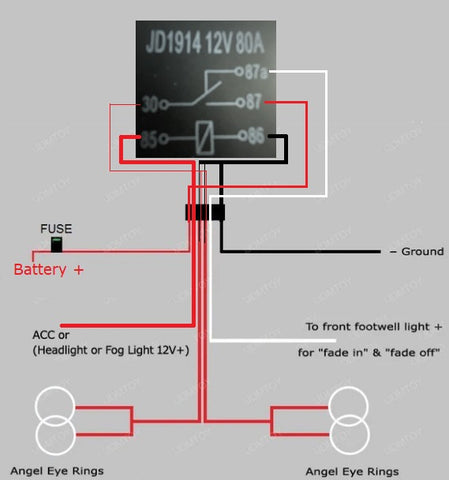

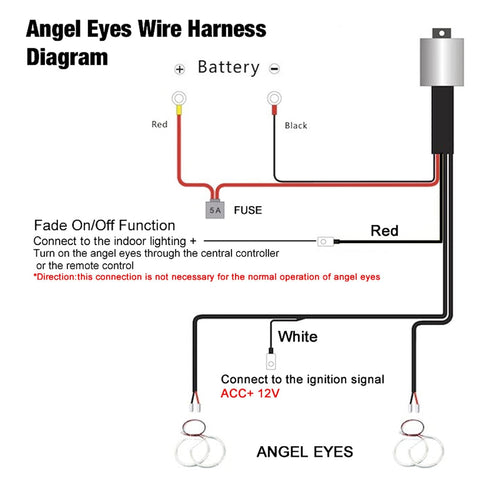

Wiring Connections
⮞ Red wire with ring terminal = Battery +12v / Constant +12v
⮞ Black wire with ring terminal = Battery - / Chassis Ground
⮞ White input wire = Footwell/interior light +12v
⮞ Red input wire = Ignition switched circuit "ACC" +12v
*Note* This is a "universal fitment" harness and wire(s) may have to be extended for your specific application.
